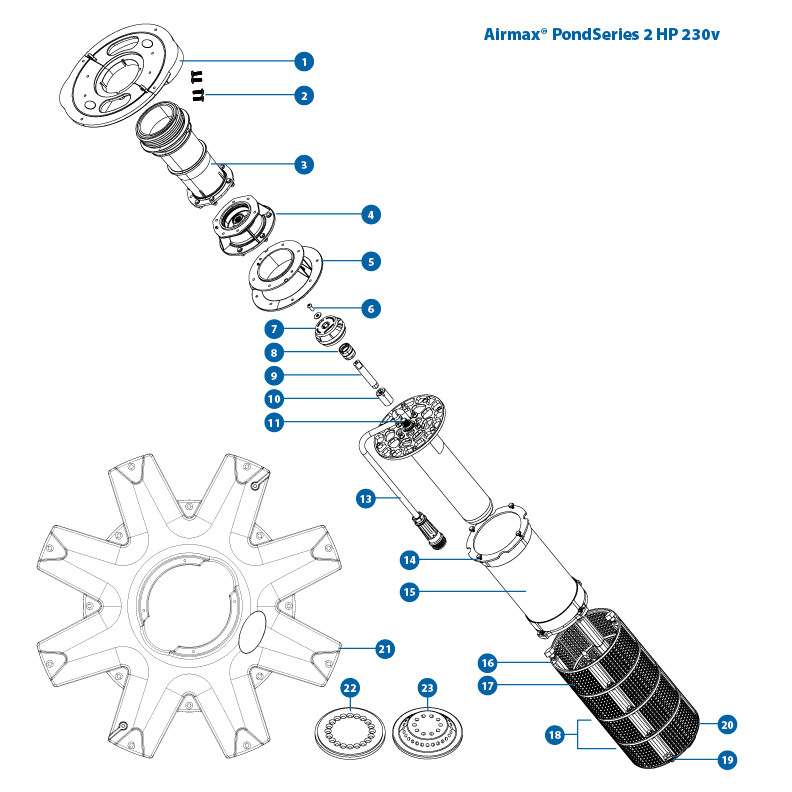

2 HP 230V Replacement Parts for PondSeries Fountain

2 HP 230V Replacement Parts for PondSeries Fountain

2 HP 230V Replacement Parts for PondSeries Fountain

1 - Float Mount Ring Assembly, 1 & 2 HP

2 - Float Mount Ring Hardware Assembly

3 - Discharge Horn Assembly

3a - Discharge Horn O-Ring, 4-Inch

3b - Pump Screw Assembly, 6 Screws

4 - Upper Shroud With Bearing Assembly

5 - Lower Shroud, 4-Inch

6 - Impeller Assembly, 2 HP, Stainless Steel

6a - Spiral Retaining Ring

7 - Thrust Bearing Assembly

8 - Stainless Shaft, 3/4-Inch

9 - Stainless Shaft Coupler Assembly

10 - Sand Slinger Washer Assembly

12 - 4-Pin Motor Lead With Disconnect

13 - Cooling Shroud Screw Assembly

14 - Cooling Shroud Assembly 2 HP

15 - T-Knob Assembly, 4 Total

16 - Intake Basket Assembly, 2 HP

17 - 652219 - Tie-Down Ring

18 - Float, 46"

19 - Trumpet Nozzle

20 - Crown and Trumpet Nozzle
